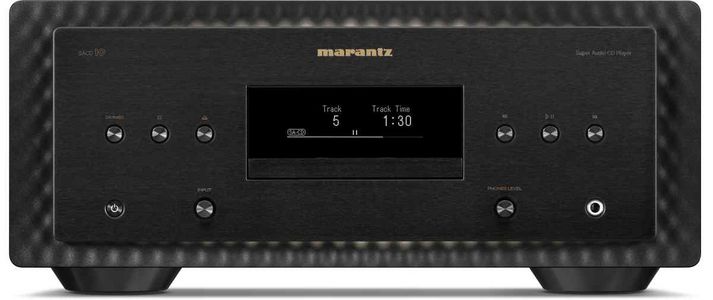

Marantz® HiFi 10 Black Super Audio CD Player
At a Glance
Product Dimensions 7.56"h x 17.32"w x 17.4"d
Featuring a proprietary SACDM-3 disc transport, Marantz Musical Filtering, and next-generation HDAM circuitry, SACD 10 offers high-resolution audio support for external source components and includes additional digital input provision for other sources.Read More
Color Finish Name:Black
Get to know this product.
Product Overview
Product Overview
The reference-standard SACD 10 is crafted to be the very best using a fully Marantz designed SACDM-3 disc transport for maximum rejection of resonance.
Marantz SACDM-3 disc transport
Headphone amplifier
OLED display
DSD 256 and PCM 384 / 32 support
Dual power supplies with toroidal transformers
Marantz Industrial Design
The Best of the Best
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and HDAM module, SACD 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and remarkable design.
Sound Master Tuned
SACD 10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail than ever before.
Pristine Sound
Made for the ultimate CD and SACD enthusiast, SACD 10 is engineered with updated Marantz Musical Mastering and a next generation HDAM module for impeccably detailed audio reproduction.
High-Res Support
SACD 10 supports balanced sources via USB-A and USB-B DAC, plus DSD 256 and PCM 384 / 32 support. Connectivity options also include coaxial and optical digital outputs and inputs, and fixed level XLR and RCA analog outputs.
Marantz Industrial Design
With a brushed aluminum control surface, spun finish details, a thick-section aluminum structure, copper-plated, triple-layered chassis, , SACD 10 is in a class of its own. Available in two colorways, Marantz Black and Marantz Champagne to complement any setting.
Accessories
Remote Controller (RC004PMND)
Battery (AAA x2)
Power Cord (Audio Grade: OFC)
Stereo RCA Cable x1
Remote connector cable x1
CoA card
Useful Documents
Specifications
General Specs | |
| Product Weight (lbs.) | 72.75 |
| Width (in.) | 17.32 |
| Depth (in.) | 17.4 |
| Height (in.) | 7.56 |
| Frequency Response | 2 Hz 0 50 kHz (-3dB) |
| Disc Capacity | 1 |
| Remote Control Included | Yes |
| Voltage | 120 |
| Battery Size | AAA |
| Wattage | 55 |
| Series | HiFi 10 |
| Analog Audio(RCA) Output | 1 |
| Color Finish Name | Black |
| Shipping Depth (in.) | 21.26 |
| Shipping Width (in.) | 23.62 |
| Shipping Height (in.) | 14.92 |
Construction | |
| Front (Center) panel, Back-shell | Aluminum |
| Side cover | Aluminum (Thickness:Max15.8mm) |
| Top cover | Aluminum (Thickness:12mm) |
| Bottom layer / Bottom plate | Triple layer copper plated |
| Foot | Solid Alminum with Copper |
| Front panel illumination | Yes (All sides, Dimmer) |
Audio (Lineout) | |
| Harmonic distortion | SACD: 0.0004% / CD: 0.0015% |
| S/N | SACD: 118dB / CD: 116dB |
| Dynamic range | SACD: 112dB / CD: 98dB |
| Line Output Level | UNBALANCED : 2.0Vrms / BALANCED : 4.0Vrms |
| Headphone Output Level | 130mW / 32 ohms |
| Power Consumption at Standby | Less than 0.3W |
Analog Audio | |
| Output Circuit | New HDAM |
| Power Transformer | Toroidal |
| Headphone Circuit | Discrete |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
Digital Audio | |
| DAC Circuit | New MMM-Conversion |
| Dither | MMM-Stream (Dither 1, 2, Off) |
| Noise Shaper | MMM-Stream (Balanced, Natural, Dynamic Music, Dynamic Voice) |
| Digital Filter | MMM-Stream Filter 1, 2 Selectable |
| Jitter Reducer | Yes |
| Asynchronous mode (for USB-B input) | Yes |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) |
Disc | |
| Mechanism | SACDM-3 |
| Disc Type | SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW |
| SACD | Yes (Stereo Layer/Multi-D/M) |
| SUPER AUDIO CD TEXT | Yes |
| Playability of files recorded on CD-R/RW | MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF |
| Playability of files recorded on DVD R/RW | MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, DSD (DIFF / DSF) |
| Firmware Update | Yes (FE/BE, MCU) |
Connectivity | |
| Fixed Analog Output (RCA) | Cinch x 1 / Thick nickel plated Maching copper L/R independent terminals |
| Fixed Balanced XLR Output | 1 |
| Optical input / output (Maximum Support) | 2 / 1 (192kHz/24bit) – 32kHz not supported |
| Coaxial input / output (Maximum Support) | 1 / 1 (192kHz/24bit) – 32kHz not supported |
| Headphone Output | Yes (φ6.3 x 1) |
| Remote Control Bus Terminal | Yes (Cinch) RC-5 In / Out |
| Remote Internal / External Switch | Yes |
| AC Inlet | Yes |
USB A Playback Capability | |
| Module or Main Device | MT8501 |
| Support format | FAT 16/32 |
| Supported Audio File | MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, DSD (DIFF / DSF) |
| DSD Native Playback | Yes |
| MFi | Battery charge only |
| USB Firmware Update | Yes (FE/BE, MCU) |
USB B Playback Capability | |
| Module or Main Device | New XMOS (XU210-256-TQ128-C20) |
| Supported Audio File | PCM, DSD |
Features | |
| Dimmer for Front Display | 20 steps |
| Last Function Memory | Yes |
| Auto Standby Mode | Yes |
