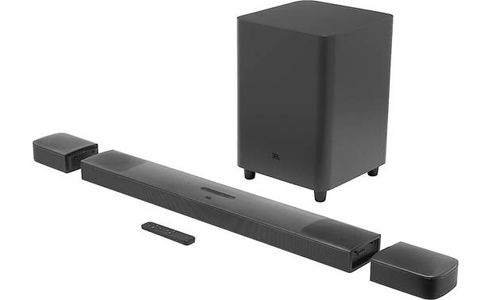

9.1 Channel Soundbar System with surround speakers and Dolby AtmosRead More
Main Soundbar output power (Max. @THD 1%)400
Surround speakers output power (Max. @THD 1%); 2 x 60WYes
Subwoofer output power (Max. @THD 1%); 300Yes
Soundbar transducer4×racetrack drivers + 2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter
Surround transducer (per piece)up-firing full-range driver + 0.75” (20mm) tweeterSubwoofer transducer10"Operating temperature0°C - 45°CStandby for Soundbar (when all wireless connections are deactivated)< 0.5 W
Networked standby (Soundbar)< 6.0 W
Networked standby (Subwoofer)< 2.0 WTime to standby<10 minutesThis equipment complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. The Soundbar unit is considered as networked equipment with high network availability (HiNA equipment and equipment with HiNA functionality) as it provides wireless network access point for two wireless Surround speakers and one wirelessSubwoofer.Yes
Audio SpecificationsHDMI In1HDMI eARC1HDMI HDCP version2.3103dBYes34Hz~20KHzYes1 Optical, Bluetooth, Chromecast, AirPlay2, USBYesDimensionsSoundbar dimensions (WxHxD); 884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7”Yes
Detachable surround speaker, per piece173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”
Subwoofer dimensions (WxHxD); 305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0"Yes
Soundbar weight3.64 kg/ 8.0 lb
Detachable surround speaker0.72 kg x 2/ 1.6 lb x2Subwoofer weight11.10 kg / 24.5 lbControl and Connection SpecificationsUSB portType AUSB rating5 V/ 500 mASupported file formatMP3MP3 codecMPEG 1 Layer 2/3, MPEG 2Layer 3, MPEG 2.5 Layer 3MP3 sampling rate; 16 KHz - 48 KHzYesMP3 bitrate80 kbps - 320 kbpsUSB Port; (USB playback is available in US version. For other versions, USB is for Service only.)Yes
Bluetooth version4.2
Bluetooth profileA2DP V1.2/ AVRCP V1.5Bluetooth frequency range; 2402MHz-2480MHzYes
Bluetooth Max. transmitting power13dbm (EIRP)
Modulation TypeGFSK, π/4 DQPSK, 8DPSKWi-Fi networkIEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)2.4G Wi-Fi frequency range2412 – 2472 MHz (2.4GHz ISM Band,USA 11 Channels, Europe and others13 Channels)2.4G Wi-Fi Max. transmitting power20 dBm (EIRP)Modulation TypeDBPSK, DQPSK, CCK,QPSK, BPSK, 16QAM, 64QAM5G Wi-Fi frequency range5.15 - 5.35 GHz, 5.470-5.725 GHz,5.725 - 5.825 GHz5G Wi-Fi Max. transmitting power22 dBm (EIRP)Modulation TypeQPSK, BPSK, 16QAM, 64QAM, 256QAM5G Wireless frequency range5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz5G Max. transmitting power13 dBm (EIRP)Modulation TypeQPSK
