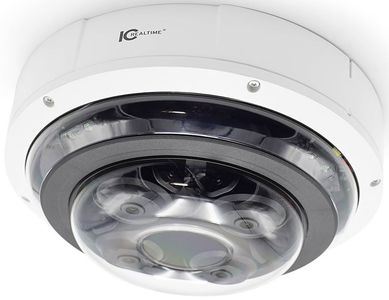

IC Realtime® Elite Series White 4 x 2MP Multi Lens Dome Camera


Model #:

IPEL-M80V-IRW1

Model #: IPEL-M80V-IRW1
918076
IC Realtime
$2,810.00

At a Glance

Product Dimensions 4.3"h x 11.2"w x 11.2"d

The IPEL-M80V-IRW1 multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four 2MP adjustable lenses can provide a flexible choice of the angle, the camera can replace multiple single-sensor cameras providing a higher return on investment.Read More

Available in Store Only
$2,810.00

Get to know this product.

Product Overview

Product Overview
Starlight Technology

For challenging low-light applications, Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Ultra WDR

Standard WDR/HDR camera can provide 120dB dynamic Range, However, for some scenes with wider contrast range, 120dB is slightly insufficient. By adopting the latest technology, Cameras can provide an amazing dynamic range up to 140dB.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed, ideal for business intelligence, workforce optimization, and actionable intelligence.

Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265

Environmental

With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies to an IK10 impact rating making it capable of withstanding the equivalent of 5kg (11.02lbs) of force. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For environments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

Protection(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), the camera is the choice for installation in even the most unforgiving environments.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Useful Documents
Specifications

General Specs

ColorWhite
Frame Rate30
Width (in.)11.2
Depth (in.)11.2
Height (in.)4.3
Number Of Cameras Included1
CollectionElite Series
Outdoor ApprovedYes
Manufacturer Warranty10 Year
Color Finish NameWhite
Smart CompatibleYes
Product Weight (lbs.)5.95

Specifications

Angle of View:H: 105° ~44°, V:54° ~25
Power Supply:AC24V, PoE+(802.3at)(Class 4)
Power Consumption:AC 24V: 9.9W 31.2W(IR on); PoE: 10.6W 23.8W(IR on)
