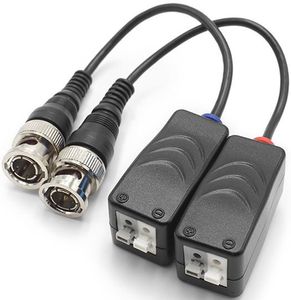

IC Realtime® Black 1 Channel Passive Video Balun

IC Realtime

Model #:

IVB-201C-V2

Model #: IVB-201C-V2
933326
IC Realtime
$84.00

At a Glance

Video Baluns provide an economical alternative to coaxial cable for video/audio/signal transmission. IVB-201C-V2 transmits up to 720P of CCTV video at distances up to 1,300 feet over unshielded twisted pair cabling when used with any passive transceiver with little to no degradation of signal.Read More

Available in Store Only
$84.00

Get to know this product.

Product Overview

Product Overview

It is also capable of 1080P at 820 feet and 4MP/4K at 590 feet and supports HD-AVS/TVI/AHD/CVBS. These Baluns save installation time/cost by sharing existing UTP network cable for video applications. The two-screw connector design makes installation easy and fast.

1-Channel passive video balun

Compatible format: HD-AVS/TVI/AHD/CVBS

Female BNC connector and pluggable screw terminal connections

Real-Time transmission over UTP CAT5E/6 cable

Excellent anti-thunder, anti-static and anti-interference capabilities

Passive, no need for power supply

Useful Documents
Specification Sheet
Specifications

General Specs

Product Weight (lbs.).09
ColorBlack
Width (in.).77
Height (in.).83
Type of CableAdapters & Connectors
Length (in.)6.84
Color Finish NameBlack
WarningProposition 65 Warning for California Residents
