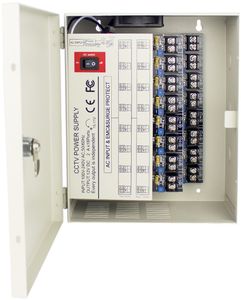

IC Realtime® Beige 16 Channel 12VDC Power Supply

IC Realtime

Model #:

PS-DC32A16HD-4DK

Model #: PS-DC32A16HD-4DK
1229942
IC Realtime
$514.00

At a Glance

PS-DC32A16HD-4DK is a 16- channel 12v DC Power supply. This power supply provided constant 12VDC power to up to 16 cameras at 2 amps per channel with a ±5%A load rating and ≥82% efficiency. The internals are housed in a tough, lockable case.Read More

Available in Store Only
$514.00

Get to know this product.

Product Overview

Product Overview

Provides 12v/ 2amps for 16 channels

Regulated and filtered DC outputs

Short circuit /over voltage/over current/over temp protection

Individual voltage adjustable for each output, 11-15V

External LED indicator for each output

100% full load burn-in test, high efficiency, long service life, high reliability

Dimensions: 8”x 9.8”x 3.0” (205mmx250mmx100mm)

Useful Documents
Specification Sheet
Specifications

General Specs

Product Weight (lbs.)4.4
Number Of Outlets16
Amp4
Voltage110-220
Color Finish NameBeige
