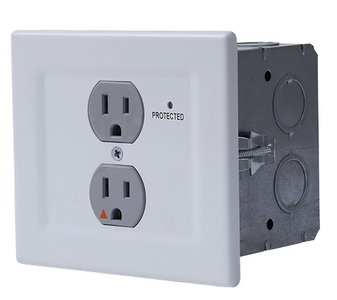

Chief® Manufacturing Power Filtering & Surge Protection Wall Outlet

Chief

Model #:

EGX-SF2

Model #: EGX-SF2
99041
Chief
$204.00

At a Glance

Product Dimensions 3.95"h x 4.33"w x 3.79"d

A high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection system. Protects equipment from disruptive high frequency noise and damage caused by power disturbances.Read More

Available in Store Only
$204.00

Get to know this product.

Product Overview

Product Overview

Non-volatile spike protection with LED power indicator

Non-sacrificial multi-stage technology

Non-current limiting design passes full power on a regular circuit; redundant protection circuits

Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime

Line filter reduces common and differential mode noise by up to 40 dB

Rated for 125V~, 60Hz, 15 A

1875 watt maximum

Ferrite toroid based EMI Filter

Withstand rating of 240 VAC continuous without damage or loss of protection

Useful Documents
Manual
Specifications

General Specs

Depth (in.)3.79
Width (in.)4.33
Height (in.)3.95
Number Of Outlets2

General

AdjustmentsFor additional dimensional specifications, see technical drawing.
CertificationsUL Listed
NotesHousing Dimensions (HxWxD): 3.95 x 4.33 x 3.79” (100 x 110 x 96 mm)
Overall Dimensions (H x W x D)4.5 x 5.25 x 4.04” (114 x 133 x 103 mm)
Power RequirementsPower Consumption: <0.5 watt; Type 3 Surge Protective Device (SPD); Voltage Protection Rating (VPR): 600V L-N, N-G; 800V L-G ; Maximum Continuous Operating Voltage (MCOV): 240V; Nominal Discharge Current (In): 3kA; Short Circuit Current Rating (SCCR): 5kA; Ambient Temperature Max: 40 degrees C
Primary Amperage15A, 1875 W continuous
Solution TypeUniversal
WarningProposition 65 Warning for California Residents
