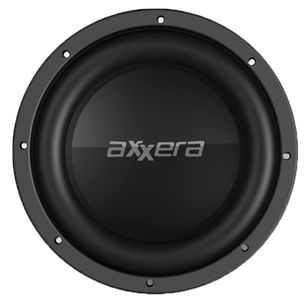

AW Series 10in Dual 2 Ohm Subwoofer - 800W Peak PowerRead More
Pressed steel basket with integrated cooling vents.
Extended pole piece and bumped vented back plate.
Extra-tough suspension spider with embedded tinsel leads.
4-Layer 2" copper voice coil with aluminum former
Extended excursion stitched rubber surround.
Pressed paper large surface area cone.
More Info | |
| Size | 10" |
| Impedance | 2 + 2 Ohm |
| RMS Power | 400 |
| Peak Power | 800 |
| Voice Coil | 2" |
| Magnet Weight | 85oz. |
| Frequency Response | 30-500Hz |
| Sensitivity (dB) | 87.6 |
| Fs (Hz) | 32.44 |
| Re | 2.22 |
| Le (mH) | 0.78 |
| Qms | 5.39 |
| Qes | 0.85 |
| Qts | 0.91 |
| Vas (Liters) | 125.76 |
| Sd (cm2) | 78.54 |
| Minimum Selaed Box Volume | 1 cu.ft |
| Optimum Sealed Box Volume | 1.5 cu.ft |
| Maximum Sealed Box Volume | 2 cu. ft. |
| Minimum Ported Box Volume | 1.25 cu.ft |
| Optimum Ported Box Volume | 1.5 cu.ft |
| Maximum Ported Box Volume | 2 cu.ft |
| Mounting Depth | 5.91" |
| Cut-Out Diameter | 9.25" |
| Total Depth | 6.7" |
| Total Width | 10.55" |
