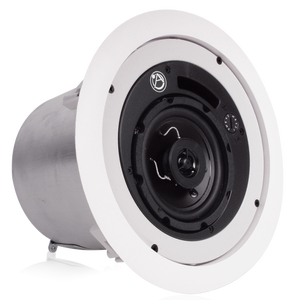

4" COAXIAL IN-CEILING SPEAKER WITH 16-WATT 70/100V TRANSFORMER, PORTED ENCLOSURE, AND UL2043 CERTIFICATIONRead More
The FAP42T-UL2043 from AtlasIED meets requirements of UL 2043 for speakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial speaker performance with wide dispersion and easy installation.
A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.
The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.
The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
Press-Fit Grille Blends Perfectly into Contemporary Architecture
The FAP42T-UL2043 combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings. The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. The FAP42T-UL2043 is UL1480 and UL2043 listed allowing for installation in true plenum air spaces.
General Specs | |
| Color | White |
| Depth (in.) | 8 7/8 |
More Info | |
| Speaker Type | Coaxial |
| Sensitivity | 88dB Average |
| Power Taps | 1, 2, 4, 8, 16 Watts & 8O |
| Dispersion | 130° |
| Power Rating | 25 Watts (8O) |
| Frequency Response | 75Hz – 20kHz (±7dB) |
| Woofer | 4" Poly Cone with Butyl Rubber Surround |
| Magnet Weight | 10oz (364g) |
| Enclosure Volume | 285 in3 |
| HF Driver | Coaxially Mounted PEI Dome Tweeter |
| Diameter | 10 1/2" (267mm) |
| Overall Height | 8 7/8" (225mm) |
| Cut-Out Diameter | 9" (229mm) |
