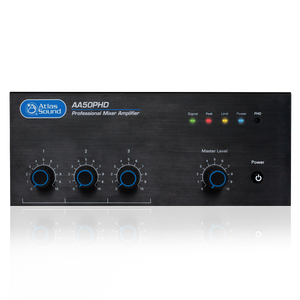

4-INPUT, 50-WATT MIXER AMPLIFIER WITH AUTOMATIC SYSTEM TEST (PHD)Read More
50W into 25V/70.7V and 4O Loads
Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
Contact Closure Mute Terminals
Variable Mute Sensitivity Control for Input 1
Preamp In for External Processors
Line Output
Remote Input Select (RIS)
Remote Level Control
Input Assignable Zone 2 Output
Two Unbalanced, Summing Line Level Inputs
Balanced Mic/Line/Tel Input w/ Phantom Power
Automated Diagnostic System Test (Push Here Diagnostic®)
Frequency Response - 50Hz - 15kHz
Connector Type - 4 Position Phoenix 3.5mm Pitch
Power Output - Max. Average Power @ 50Hz-15kHz with .5% THD, 4O 50W RMS
Height - 3.66" (93mm)
Width - 8.27" (210mm)
Depth - 10.87" (276mm)
Weight - 10.5lb
Shipping Weight - 12.4lb
Voltage Compatibility - 110V - 120V
