The SWR-M100's high excursion capabilities mean deep, high-output bass for great on-water performance, no matter where it is installed!Read More

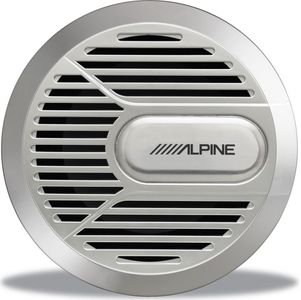

Don't deprive your boat from the absolute best sound you can get. Alpine presents the SWR-M100, a 10-inch marine subwoofer part of the all-new marine lineup.
300W RMS/900W Peak
4Ohm Impedance
High Excursion for deep, high output bass
Infinite Baffle Design for widest application
Custom high-strength polypropylene frame
Custom high-strength polypropylene frame High AMplitude Multi-Roll (HAMR) Surround (Pat. Pend)
CRC Motor Structure (Patented)
Thermal Management System
Integrated Insert & Spade Terminals
Hidden Screw Mounting & Grille Design
PRODUCT OVERVIEW Don't deprive your boat from the absolute best sound you can get. Alpine presents the SWR-M100, a 10-inch marine subwoofer part of the all-new marine lineup. FEATURES 300W RMS/900W Peak 4Ohm Impedance High Excursion for deep, high output bass Infinite Baffle Design for widest application Custom high-strength polypropylene frame High AMplitude Multi-Roll (HAMR) Surround (Pat. Pend) CRC Motor Structure (Patented) Thermal Management System Integrated Insert & Spade Terminals Hidden Screw Mounting & Grille Design Waterproof Rubber Mounting Gasket Included
Material: Molded Polypropylene
Design: 2-Piece Structural Parabolic
Material: Injection Molded Sanoprene
Design: High Amplitude Multi-Roll
Material: Nomex
Design: Progressive
Material: High Temp. Copper Wire on TIL Former
Design: 4-Layer Single Voice Coil
Pole Geometry: Compound Radius Curve
Configuration: Airflow Management System
Material: Injection Molded Polypropylene
Design: Custom High Strength 5-Leg
Layout: One Side
Design: 2-Way, Insert & Quick-Connect Terminals
Design: 16ga. Stranded Leads, Insulated
Design: Rubber Mounting Gasket
CEA-2006 Power Rating: 300 Watts
RMS Power Handling: 300 Watts
Peak Power Handling: 900 Watts
Mounting Depth: 144.72 mm (5-11/16'')
Mounting Diameter: 229 mm (9-1/32'')
Displacement: 0.083ft cu. ft. (Front Mount)
Added Volume: 0.055 cu. ft. (Reverse Mount, Magnet Out)
Alpine’s Marine line was recently named “Favorite Stereo Manufacturer” in Powerboat magazine’s 2010 Readers’ Choice Awards! Readers were asked to submit their favorite brands within 20 different marine categories. Alpine’s line of dedicated marine products came out on top in the audio category!
General Specs | |
| Woofer Size | 10" |
| Mount Depth | 5.69 |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 300 |
| Peak Power Rating (Watts) | 900 |
| Subwoofer Size | 10" |
| Shallow Mount | No |
