Product Overview
Alpine’s Exclusive Dynamic Peak Power (DPP) Technology
Remote Bass-Knob ready with the RUX-KNOB.2 (sold separately)
PowerStack capable with the Alpine iLX-W650 (sold separately)
Product Dimensions: 7” x 1.5 “ x 3.5 “
CTA-2006
Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
200W x 1 RMS (4Ω, 14.4V, ≤1% THD+N)
200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N)
400W x 1 DPP (2Ω, 14.4V, ≤1% THD+N)
S/N >85dB (ref. 1W into 4Ω)
THD+N ≤0.1% (ref. 10W into 2Ω)
Single-side 22-pin connector
RCA inputs (selectable, Low range=0.2-4V)
Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
A Simple Way To Add Bass

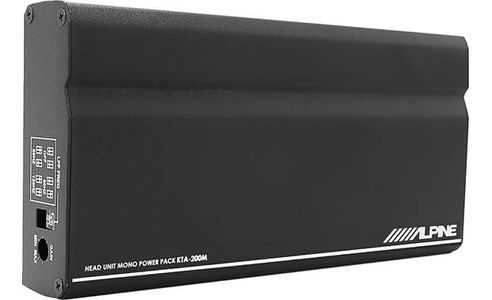

If you're craving the impact of bass in your sound system but don't have the room in your budget or vehicle for a traditional amplifier, start your journey to better sound with the compact KTA-200M. With the highest performance value on the market, this mono-power amp provides an easy upgrade path to add more bass to your sound system.
Big Sound In A Small Package
Utilizing Alpine's exclusive Dynamic Peak Power (DPP) technology, the 200-watt KTA-200M delivers bursts of power to meet the peak demands of your music effectively rising to 400-watts and then rolling back to maintain efficiency. The result is crisp, clean music at all volumes.
