Alpine® 30MC 3-Inch Midrange Component Speakers

Product Overview

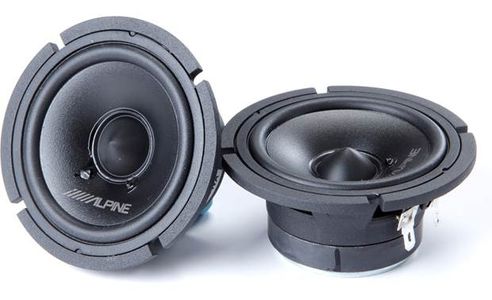

(2) 3-inch Speakers

High-Strength Cast Aluminum Basket

Polypropylene Cone

Rubber Surround

Max RMS Power Capacity: 50W RMS

Peak Power Capacity: 150W RMS

Cone Material: Polypropylene

Magnet Type: Ferrite

Resonant Frequency Response: 125 Hz

X-max: 2.5mm

Frequency Response: 100Hz-20kHz

Sensitivity: 84dB (1W / 1m)

Nominal Impedance: 6 Ohm

Terminal Type: Male Quick Disconnects

Mounting Depth: 1 5/16-inch

Cutout Diameter: 2 1/2-inch

Outer Diameter: 3.1-inch

Crossover: (Not Included) DSP Recommended

Crossover Recommendation: BP Filter (Low = 250Hz @ -12dB/Oct) (High = 2.4kHz @ 12dB/Oct)

Capture Midrange Frequencies

Often in a 2-way component system, there’s a dip in the midrange frequencies reproduced between the door speaker and where the tweeter crosses into the passband. This can cause the music to miss most of the instruments and vocals that are found in the midrange frequency.

The 30MC Midrange Component Speaker captures the higher midrange frequencies by integrating a dynamic third dimension into the sound system that seamlessly blends between the door speaker and tweeter. This brings the vocal element up, setting the vehicle’s sound stage to the optimal position of front and center.

Versatile Installation

The 30MC includes two small and sleek speakers that measure 3-inches with a mounting depth of 1 5/16-inch. The slim mounting depth allows for easy installation into most vehicle applications.

While this product is not a “direct-fit” solution for any vehicle (some installation may require vehicle-specific adapter plates) it can be professionally installed in a dash, A-pillars, or doors to capture midrange frequencies and project the sound to the front and center of the vehicle.

Pair It With A Digital Processor

The 30MC does not include a crossover, so for best results in music performance, pair the 30MC with Alpine's PXE-0850S Advanced Wireless Digital Signal Processor. Customize the crossovers and make precise adjustments to the time correction for well-balanced response and a proper center sound stage.

Build Your Perfect Sound System

The 30MC is the "cherry on top" for sound system builders looking for high-quality performance. The 30MC is a perfect power match for Alpine's S, R, or X Series sound system. Add a dynamic third component into an existing 2-way component system for higher-quality music experience.
